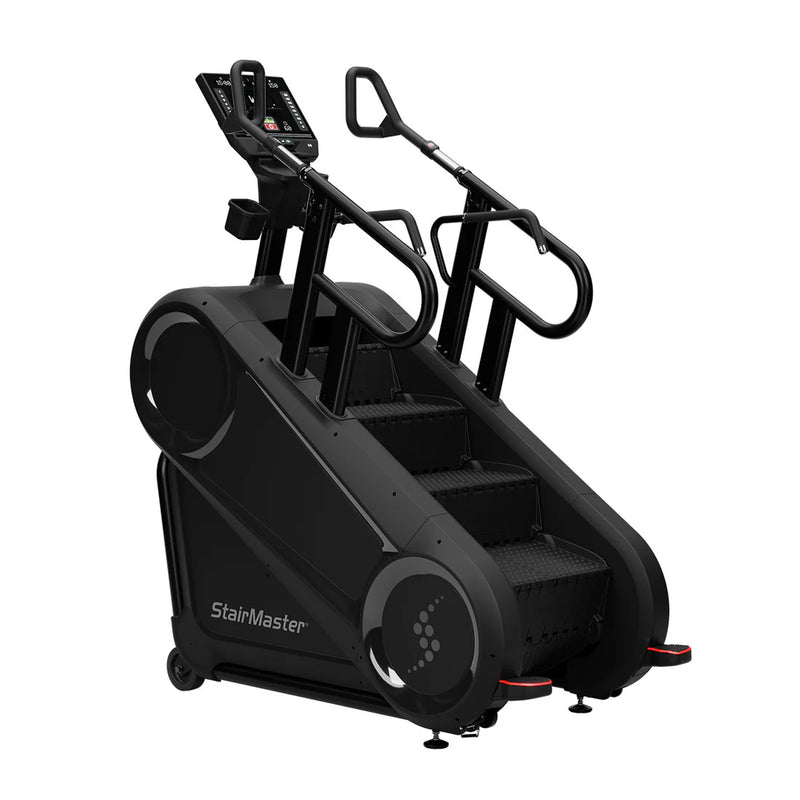

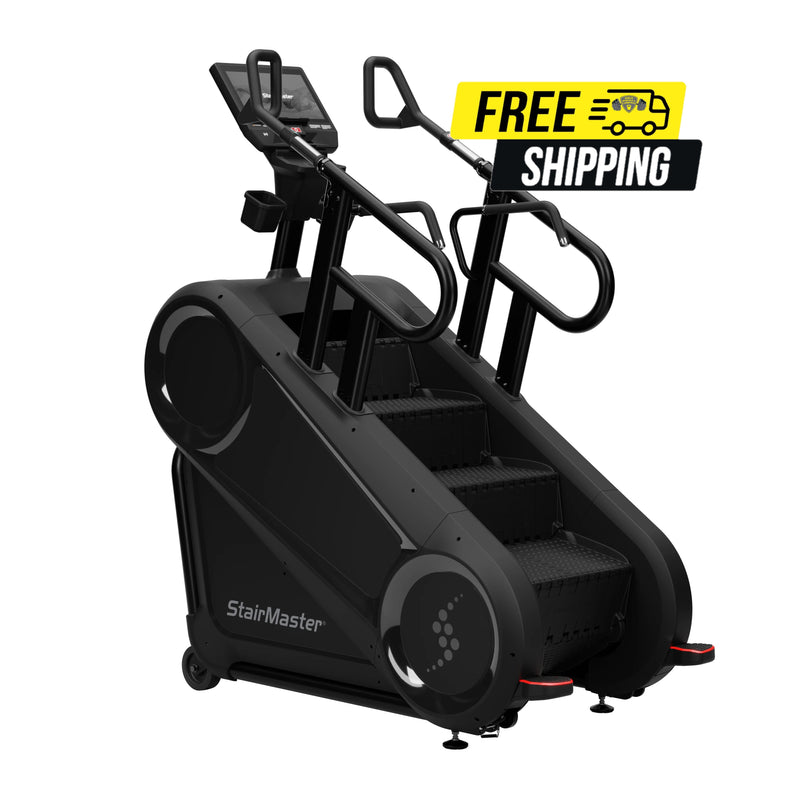

StairMaster 10 Series 10G Gauntlet Stair Climber StepMill

Original price $11,599.00 - Original price $15,999.00
Original price
$11,599.00 - $15,999.00
Current price $11,599.00
in stock, ready to be shipped
Out of stock
in stock, ready to be shipped

Estimated Shipping:

Leaves Warehouse in 3-5 Business Days


The StairMaster 10G marks a revolutionary shift in stair-climbing technology. The innovative new design features the Overdrive Training Mode that simulates carrying or pushing a load up stairs, for the most intense climbing workout. The 10G’s advancements all focus on delivering the best climbing experience ever created. User-focused features include the widest and deepest stepping surface and lowest step-up height in the industry, ergonomic handrails to support multiple climbing positions and an all new drive train that delivers smooth, quiet performance.

Assembly required.

Contact us for current lead times.

  • Features
  • Dimensions
  • Technology
  • Resources
    • Choose between 10″, 16″ & LCD versions of the new OpenHub family of consoles
    • Includes the new OverDrive Training Mode that simulates performing a Sled Push and Farmer’s Carry up stairs for the most intense cardio workout
    • Includes the Landmark Challenge Program as well as standard console programs
    • The Landmark Challenge program allows users to climb well-known landmarks from around the world like the Eiffel Tower, the Statue of Liberty and the Taj Mahal
    • Standard console programs are also included
    • Electronically controlled generator, brake and drive chain precisely control the stair speed, allowing a wide range of users to exercise smoothly within their comfort zones
    • Hand rail mounted stop button, level controls and contact heart rate
    • Revolving staircase with eight steps, 8” (20 cm) high, 12” (30 cm) deep and 22” (56 cm) wide
    • Step Up Height: 9”
    • Step rate: 25 Levels, ranging from 24-190 steps per minute
    • 15” display allows adjustment of step rate in single SPM increments
    • Bluetooth connectivity for user workout data tracking (15” display includes BLE headphones and HR connectivity)
    • Telemetry and contact HR
    • USB charging port
    • HDMI streaming from personal device available with PVS and 16″ display
    • Multiple bottle and accessory holders
    • Personal cooling fans create a more rewarding workout
    • LCD and 10″ displays pre-wired for PVS entertainment, 800/900mHZ receivers, and tablet holder
    • Electrical requirements: 12V/5 Amp power supply
    • Powder-coated Steel frame
    • Maximum User Weight: 400 lbs (181 kg)
  • Assembled Weight: 646 lbs (293 kg)

    Assembled Dimensions: 63"L x 34"W x 83"H

  • Connect to Apple Watch or Samsung Galaxy Watch
    OpenHub LCD Consoles and 16″ Embedded Displays are able to connect directly with Apple Watch or Galaxy Watch for real-time data sharing between the equipment and watch using NFC technology to allow a simple tap to pair connection.

    Embedded Console powered by AndroidTM
    The 8 and 10 Series Cardio embedded consoles boast clear HD resolution, high-speed functionality, and familiar user-interface for workouts and entertainment. With on-board apps, IPTV, hassle-free maintenance, and brand customization options, our embedded consoles are the solution for modern fitness technology.
